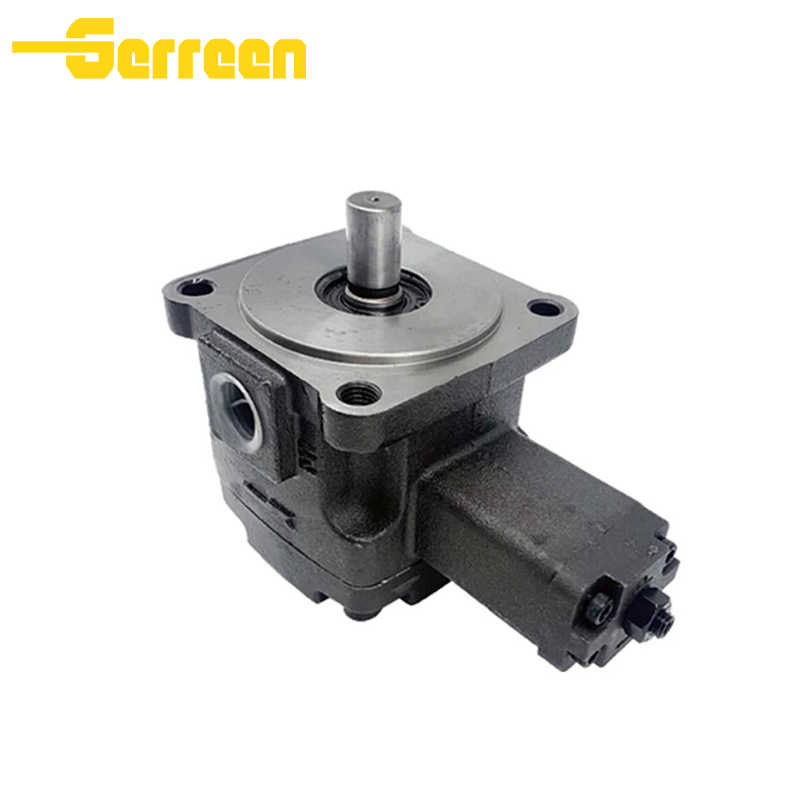

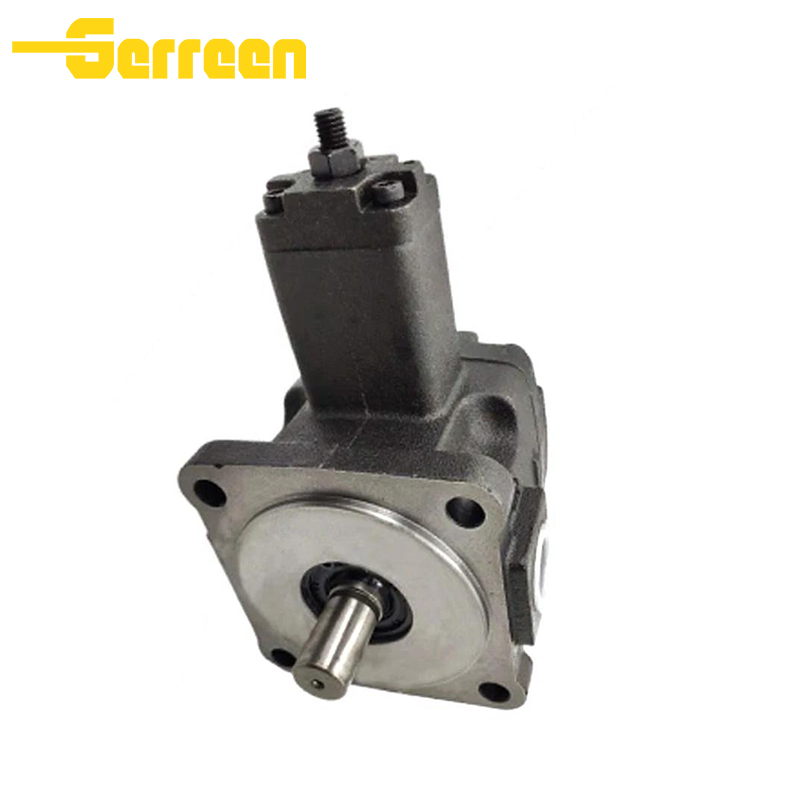

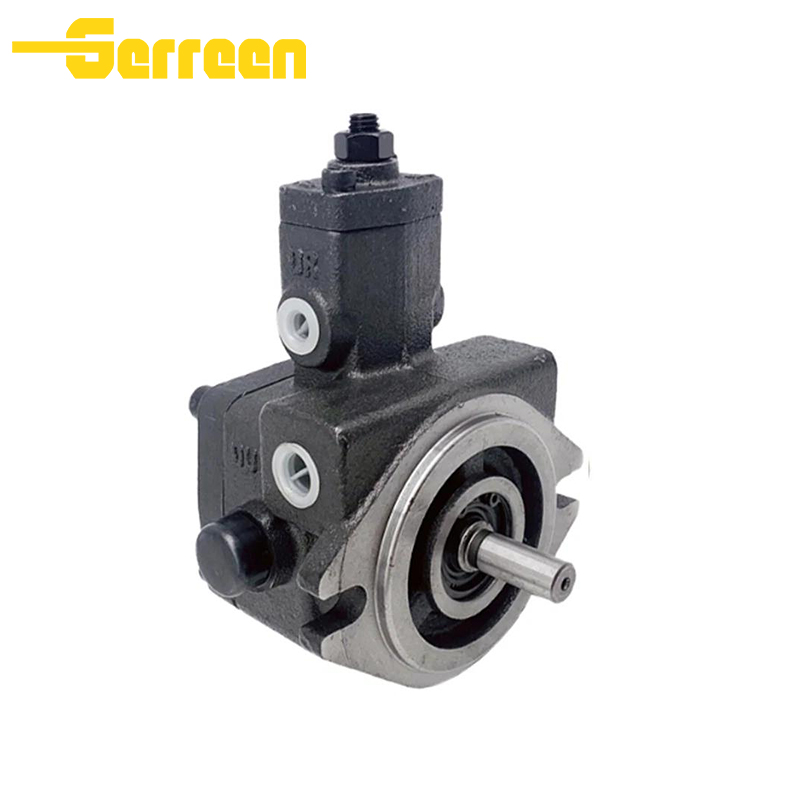

VP Vane pump
Green Hydraulic
Yes
ISO9001，CE
1 set
Product Description
The VP Series (Variable Displacement Vane Pumps) from Green Hydraulic are designed for high-efficiency hydraulic performance, offering precise control over flow and pressure by automatically adjusting output according to system load. These pumps are recognized for their energy-saving features and low noise operation, making them ideal for industrial automation, machine tools, and mobile machinery. Built to withstand demanding conditions, the VP Series ensures reliable, efficient performance across a wide range of applications.
High Efficiency and Energy Saving: The flow rate automatically decreases as pressure increases, reducing power loss and heat generation caused by excess oil flowing back to the tank via the relief valve.
Low Noise: Thanks to the structural characteristics of the vane pump, its operating noise is quieter than gear pumps, typically between 60-70 dB.
Compact Structure: The pump body is small and usually integrates pressure and flow regulating valves, eliminating the need for complex external control circuits.
Fast Response: Pressure compensation reacts quickly, making it suitable for machinery with frequent operating cycles.
1. Significant Energy Efficiency
On-Demand Oil Supply: It automatically adjusts the flow rate based on system pressure. When the system reaches the set pressure (e.g., during pressure holding), the flow rate automatically decreases to near zero, preventing excess oil from generating heat through the relief valve, thus significantly reducing energy consumption.
Low Heat Generation: Due to reduced overflow losses, the hydraulic oil temperature rises more slowly, extending the service life of the oil and seals, sometimes even eliminating the need for a cooling system.
2. Compact and Integrated Design
Built-in Control Valves: VP pumps typically come with built-in pressure and flow control bolts. This means you don't need to install complex pressure control valves in the piping, simplifying hydraulic system design and saving space.
Small Size: Ideal for installation in small machine tools or space-constrained power units.
3. Low Noise & Smooth Operation
Quiet Operation: The structural characteristics of vane pumps make them quieter than gear pumps of the same displacement even under high pressure (typically between 60-70 dB), contributing to a better workshop working environment.
Minor Pressure Pulsation: The output flow is very uniform, resulting in smoother operation of actuators (such as hydraulic cylinders).
Application
1. Industrial Hydraulic Systems
2. Mobile Equipment
3. Construction and Engineering Machinery
4. Metallurgy and Steel Industry
5. Marine and Offshore Equipment
Vane pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
| F3 | -30VQ | -28 | -A | -1 | -A | -22 | -R |
| Series | Flow code | Port connections | Shaft type | Outlet positions | Design number | Rotation(Viewed from cover end of pump) | |
| F3: Fluoro rubber seals Omit if not required | 30VQ | 24 28 | A-SAE 4-bolt flange | Str key-1 HD str key-86 Spline-11 | Viewed from cover end of the pump A-Opposite inlet port B-90°CCW from inlet C-lnline with inlet D-90°CW from inlet | 22 | R-Right hand for clockwise,omit L-Left hand for counterclockwise |
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
| Series | Flow code | Geometric displacement ml/r | Max.pressure(Mpa) | Max.speed(rpm) | Min.speed(rpm) |
| 30VQ | 24 | 80 | 21 | 2500 | 600 |
| 28 | 89 | 21 | 2500 |
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
