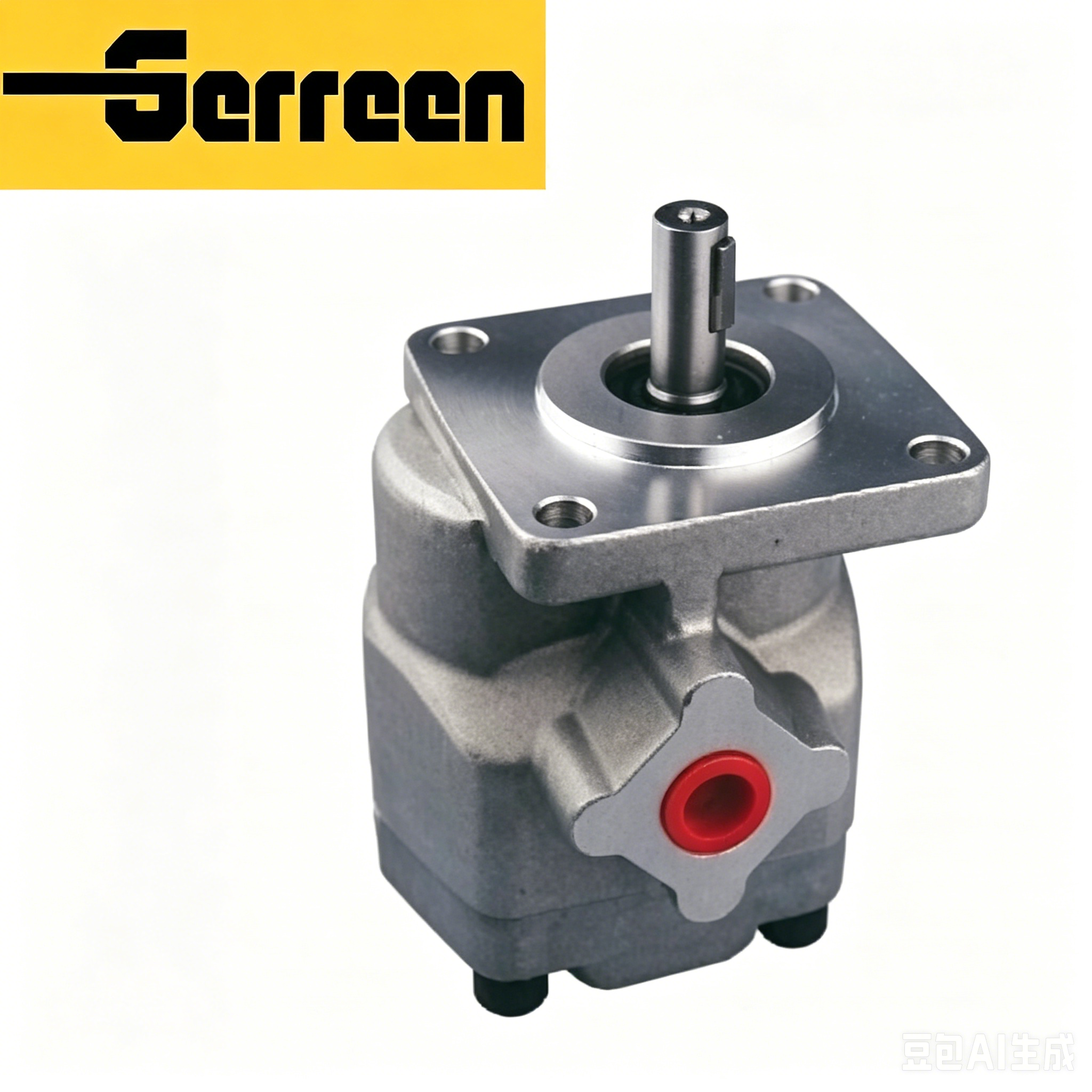

RGP-2A-F Series Gear Pump Gear Pump Hydraulic System

RGP-2A-F Series Gear Pump

Features and Benefits

• 1. High Efficiency

• Optimized internal structure reduces oil leakage.

• Provides stable flow output and excellent volumetric efficiency.

• 2. Compact and Lightweight Design

• Small installation size saves equipment space.

• Suitable for compact hydraulic systems.

• 3. Low Noise Operation

• Precision-machined gears minimize vibration and noise.

• Ensures smoother machine performance.

• 4. Strong Durability

• High-strength aluminum alloy or cast iron housing.

• Resistant to wear, pressure, and long-term operation.

• 5. Easy Maintenance

• Simple gear pump structure for convenient servicing.

• Replacement parts are easy to access.

• 6. Wide Compatibility

• Compatible with various hydraulic oils.

• Suitable for multiple hydraulic applications and machinery brands.

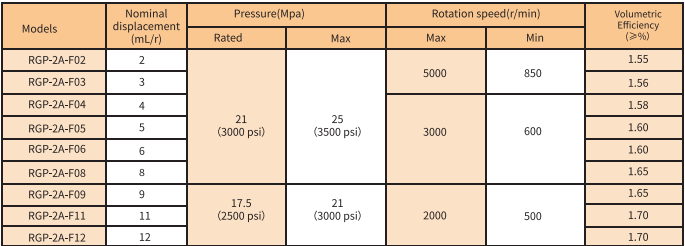

Model Codes

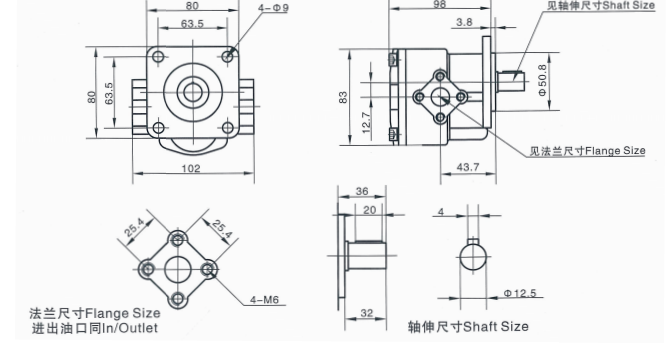

RGP-2A-F Series Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Construction machinery

• Excavators

• Loaders

• Forklifts

• Road rollers

• Agricultural machinery

• Tractors

• Harvesters

• Seeders

• Industrial hydraulic systems

• Hydraulic power units

• Press machines

• Injection molding machines

• Material handling equipment

• Lift platforms

• Cranes

• Conveyor systems

• Mobile hydraulic equipment

• Dump trucks

• Municipal vehicles

• Small engineering equipment

Packaging & Delivery

RGP-2A-F Series Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

RGP-2A-F Series Gear Pump FAQ

1. What are the main features of the RGP-2A-F Series?

Its main features include compact design, high efficiency, low noise, stable performance, and long service life.

2. Can the RGP-2A-F pump operate under high pressure?

Yes, the pump is designed to handle stable working pressure within the specified operating range. Proper system setup and oil cleanliness are recommended for optimal performance.

3. What industries commonly use this gear pump?

It is commonly used in construction machinery, agricultural equipment, industrial hydraulic systems, and mobile hydraulic applications.

4. How can I extend the service life of the pump?

Regular maintenance, using clean hydraulic oil, replacing filters on time, and avoiding overload operation can effectively extend the pump’s lifespan.

5. Is the installation process complicated?

No. The compact structure and standard mounting dimensions make installation simple and convenient.

6. What should be checked before starting the pump?

Before operation, check the hydraulic oil level, oil cleanliness, pipe connections, rotation direction, and ensure there is no air inside the hydraulic system.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

RGP-2A-F Series Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
