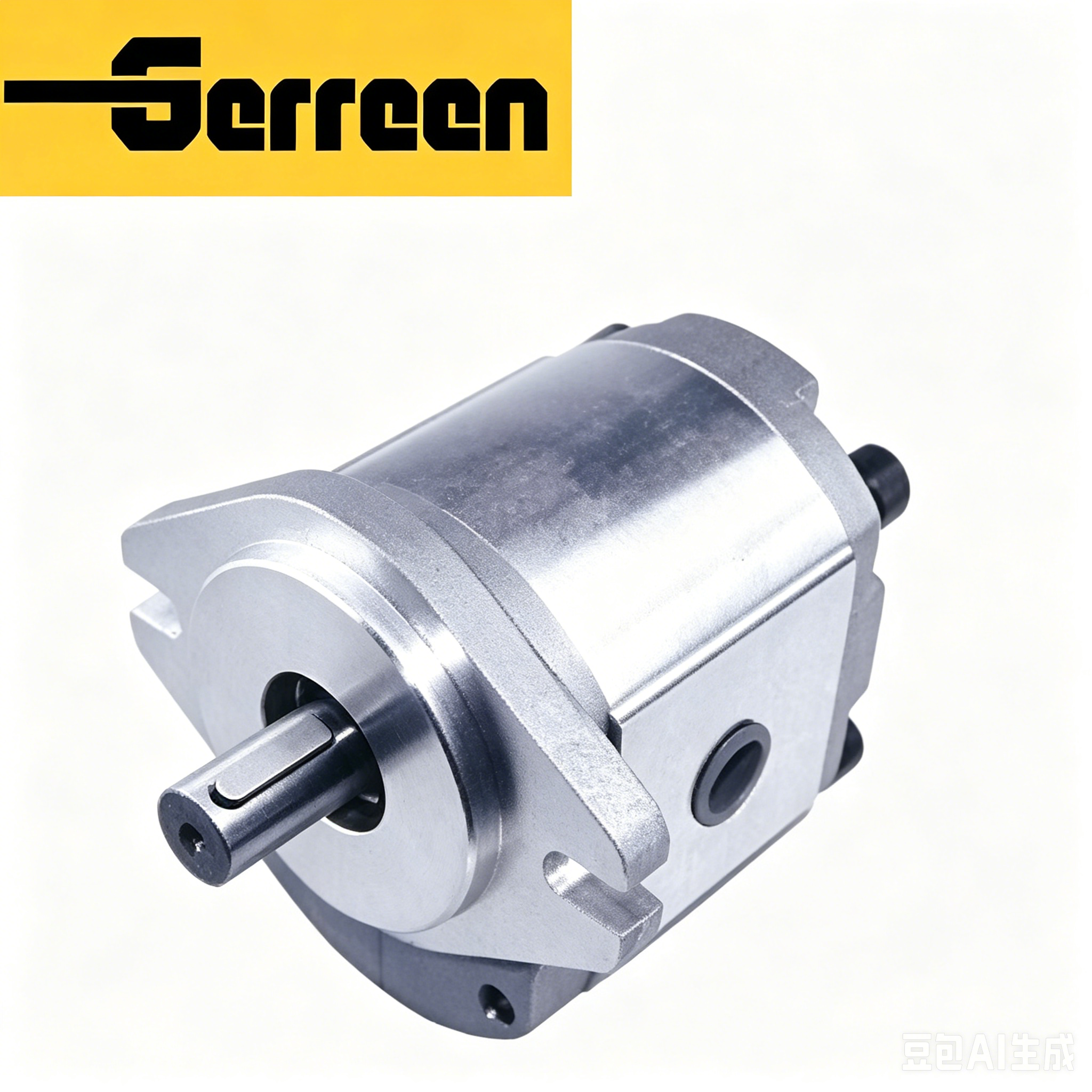

CBQ-F500 Series Gear Pump Hydraulic Gear Pump Motor

CBQ-F500 Series Gear Pump

Features and Benefits

• 1. High Volumetric Efficiency

• Precision gear design minimizes internal leakage.

• Ensures stable flow and efficient hydraulic transmission.

• 2. Compact Structure

• Lightweight and compact body design.

• Easy to install in limited equipment spaces.

• 3. Stable and Reliable Performance

• Smooth hydraulic output under continuous operation.

• Suitable for demanding working environments.

• 4. Low Noise and Low Vibration

• Optimized gear profile reduces operating noise.

• Improves overall machine comfort and stability.

• 5. Long Service Life

• High-strength housing and wear-resistant internal parts.

• Excellent resistance to pressure and heavy-duty operation.

• 6. Easy Maintenance

• Simple external gear pump structure.

• Convenient for inspection, repair, and parts replacement.

• 7. Wide Application Compatibility

• Compatible with various hydraulic oils.

• Suitable for different hydraulic systems and machinery brands.

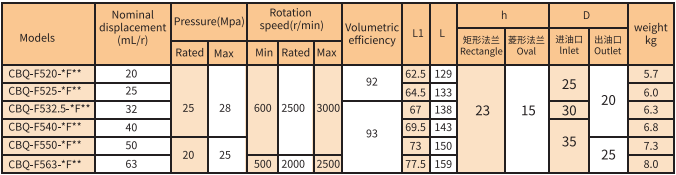

Model Codes

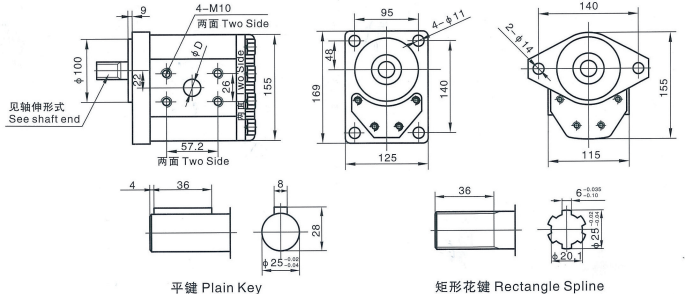

CBQ-F500 Series Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Construction Machinery

• Excavators

• Wheel loaders

• Bulldozers

• Forklifts

• Road rollers

• Agricultural Machinery

• Tractors

• Harvesters

• Seeders

• Agricultural hydraulic systems

• Industrial Hydraulic Systems

• Hydraulic power units

• Press machinery

• Injection molding machines

• Hydraulic machine tools

• Mobile Hydraulic Equipment

• Dump trucks

• Crane trucks

• Municipal engineering vehicles

• Mining and Engineering Equipment

• Mining machinery

• Lifting equipment

• Heavy-duty hydraulic systems

Packaging & Delivery

CBQ-F500 Series Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBQ-F500 Series Gear Pump FAQ

1.What type of pump is the CBQ-F500 Series?

The CBQ-F500 Series is an external hydraulic gear pump designed for hydraulic oil transmission and power applications.

2. What are the main advantages of the CBQ-F500 Series?

The pump offers high efficiency, stable pressure output, compact design, low noise, durability, and easy maintenance.

3. What hydraulic fluids are suitable for this pump?

The pump is generally compatible with mineral hydraulic oil and anti-wear hydraulic fluids with appropriate viscosity.

4. Can the CBQ-F500 pump operate under high pressure?

Yes. The CBQ-F500 Series is designed for medium and high-pressure hydraulic systems with reliable continuous performance.

5. Which industries commonly use the CBQ-F500 Series?

It is widely used in construction machinery, agricultural equipment, industrial hydraulic systems, mining machinery, and engineering vehicles.

6. What should be checked before operating the pump?

Before starting the pump, check hydraulic oil level, oil cleanliness, pipe connections, rotation direction, and ensure there is no air trapped inside the hydraulic system.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

CBQ-F500 Series Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
