Parker Commercial Intertech gear pump gears set gear shaft connect shaft

We have complete gear machine including NC gear hobbing, NC gear shaving, NC gear shaping,NC gear & spline grinding, CNC worm wheel gear grinding and CNC machining center, NC heat treatment line and complete gear inspection equipments.

  • P30/31 P50/51 P75/76 P315 P330 P350 P365 C101/102 G101/102

  • Standard export carton/plywood case

  • T/T, L/C, Western Union

  • 5000pcs/month

  • 1~35days

Availability:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Green Hydraulic Professional Gear Pump Parts Description


Green Hydraulic is professional gear pump parts manufacturer with ISO9001 certificated. Here in our own factory, we provide high-precision hydraulic pump gear set and shafts. All the gear parts can be interchanged with that of OEM parts of the hydraulic pump such as Permco, Parker Commercial Intertech, GPM and Metaris gear pumps.


We have complete gear machine including NC gear hobbing, NC gear shaving, NC gear shaping,NC gear & spline grinding, CNC worm wheel gear grinding and CNC machining center, NC heat treatment line and complete gear inspection equipments. All of our gear parts are strictly made according to the standard of OEM. More than 85% of our parts are exported to America, Europe and Asia market for hydraulic gear pumps, PTO(power take off) and mobile equipments etc.

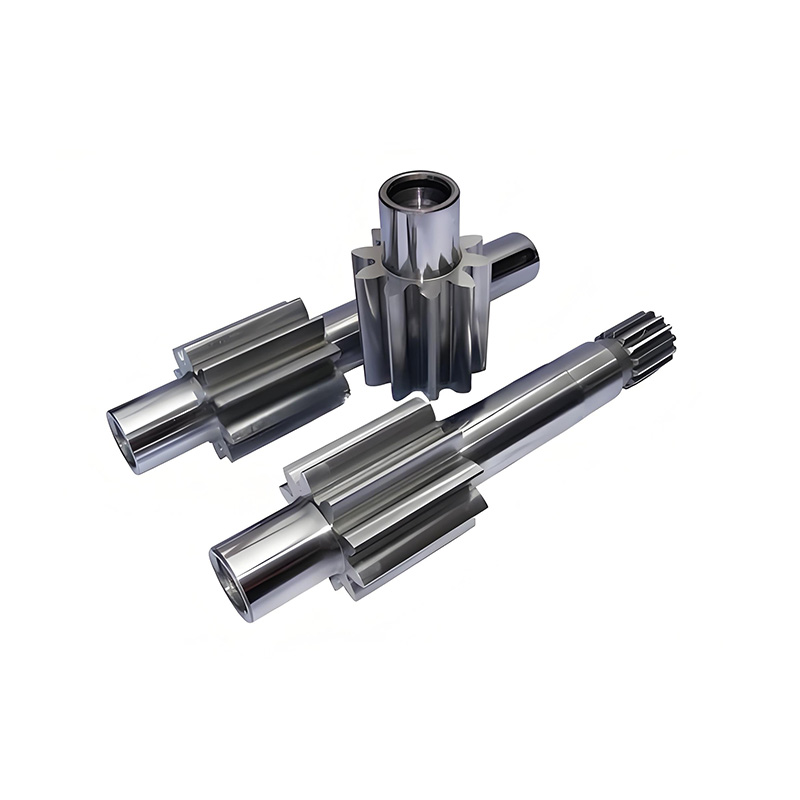

Parker Commercial P315 gear pump gears and shafts

Parker Commercial Intertech gear pump gears set gear shaft connect shaft

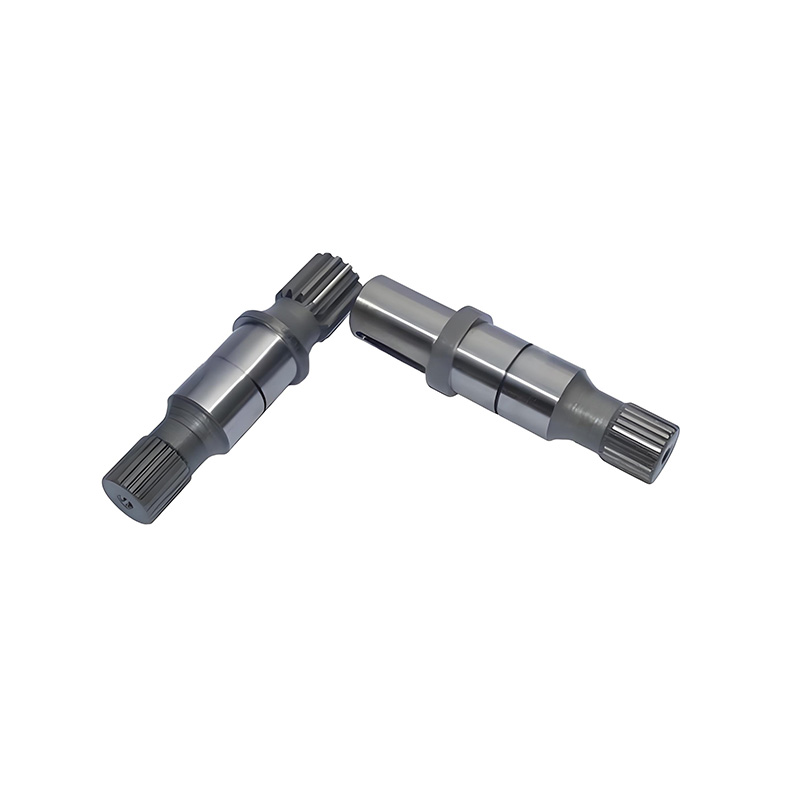

Parker Commercial P31 P51 P76 P315 P330 P350 P365 gear pump connect shafts

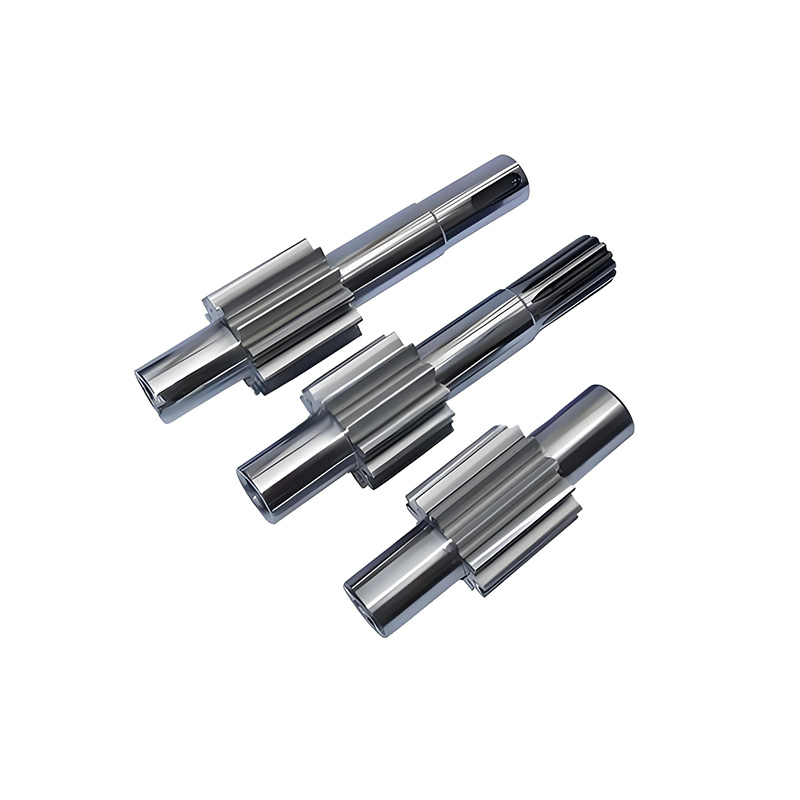

Parker Commercial P50 P51 pump gear set and shafts


Parker Commercial Intertech gear pump gears set gear shaft connect shaft - Green Hydraulic Supplies




Gear set and shaft for Parker Commercial gear pump:


P15 PUMP GEAR SET

302-2805-000 GEAR SET BA-1007M-05 1/2"
302-2807-000 GEAR SET BA-1007M-07 3/4"
302-2810-000 GEAR SET A-1007M-10 1"
302-2812-000 GEAR SET BA-1007M-12 1-1/4"
302-2815-000 GEAR SET BA-1007M-15 1-1/2"
302-2817-000 GEAR SET BA-1007M-17 1-3/4"
302-2820-000 GEAR SET BA-1007M-20 2"



P20 P21 PUMP GEAR SET

312-2805-000 GEAR SET V-1007M-05 1/2"
312-2807-000 GEAR SET V-1007M-07 3/4"
312-2810-000 GEAR SET V-1007M-10 1"
312-2812-000 GEAR SET V-1007M-12 1-1/4"
312-2815-000 GEAR SET V-1007M-15 1-1/2"
312-2817-000 GEAR SET V-1007M-17 1-3/4"
312-2820-000 GEAR SET V-1007M-20 2"
312-2825-000 GEAR SET V-1007M-25 2-1/2"
312-2907-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-07 3/4"
312-2910-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-10 1"
312-2912-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-12 1-1/4"
312-2915-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-15 1-1/2"
312-2917-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-17 1-3/4"
312-2920-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-20 2"
312-2907-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-07 3/4"
312-2910-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-10 1"
312-2912-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-12 1-1/4"
312-2915-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-15 1-1/2"
312-2917-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-17 1-3/4"
312-2920-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-20 2"
312-2922-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-22 2-1/4"
312-2925-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-25 2-1/2"
312-2907-430  SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-07 3/4"
312-2910-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-10 1"
312-2912-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-12 1-1/4"
312-2915-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-15 1-1/2"
312-2917-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-17 1-3/4"
312-2920-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-20 2"
312-2905-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-05 1/2"
312-2907-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-07 3/4"
312-2910-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-10 1"
312-2912-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-12 1-1/4"
312-2915-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-15 1-1/2"
312-2917-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-17 1-3/4"
312-2920-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-20 2"



P25 PUMP GEAR SET

303-2805-000 GEAR SET KA-1007M-05 1/2"

303-2807-000

 GEAR SET KA-1007M-07 3/4"

303-2810-000

 GEAR SET KA-1007M-10 1"

303-2812-000

 GEAR SET KA-1007M-12 1-1/4"

303-2815-000

 GEAR SET KA-1007M-15 1-1/2"

303-2817-000

 GEAR SET KA-1007M-17 1-3/4"

303-2820-000

 GEAR SET KA-1007M-20 2"

303-2822-000

 GEAR SET KA-1007M-22 2-1/4"
303-2825-000 GEAR SET KA-1007M-25 2-1/2"



P30 P31 PUMP GEAR SET

312-2805-000 GEAR SET V-1007M-05 1/2"
312-2807-000 GEAR SET V-1007M-07 3/4"
312-2810-000 GEAR SET V-1007M-10 1"
312-2812-000 GEAR SET V-1007M-12 1-1/4"
312-2815-000 GEAR SET V-1007M-15 1-1/2"
312-2817-000 GEAR SET V-1007M-17 1-3/4"
312-2820-000 GEAR SET V-1007M-20 2"
312-2825-000 GEAR SET V-1007M-25 2-1/2"

312-2907-730

 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-07 3/4"
312-2910-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-10 1"
312-2912-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-12 1-1/4"
312-2915-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-15 1-1/2"
312-2917-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-17 1-3/4"
312-2920-730 SHAFT/GEAR SET 7/8 KEYED DD-1135M-3-20 2"
312-2907-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-07 3/4"
312-2910-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-10 1"
312-2912-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-12 1-1/4"
312-2915-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-15 1-1/2"
312-2917-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-17 1-3/4"
312-2920-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-20 2"
312-2922-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-22 2-1/4"
312-2925-230 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-25 2-1/2"
312-2907-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-07 3/4"
312-2910-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-10 1"
312-2912-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-12 1-1/4"
312-2915-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-15 1-1/2"
312-2917-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-17 1-3/4"
312-2920-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT BD-1135M-4-20 2"
312-2905-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-05 1/2"
312-2907-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-07 3/4"
312-2910-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-10 1"
312-2912-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-12 1-1/4"
312-2915-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-15 1-1/2"
312-2917-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-17 1-3/4"
312-2920-740 SHAFT/GEAR SET 1" KEYED ED-1135M-3-20 2"



P37 PUMP GEAR SET

305-2805-000

 GEAR SET JA-1007M-05 1/2"

305-2807-000

 GEAR SET JA-1007M-07 3/4"

305-2810-000

 GEAR SET JA-1007M-10 1"

305-2812-000

 GEAR SET JA-1007M-12 1-1/4"

305-2815-000

 GEAR SET JA-1007M-15 1-1/2"

305-2817-000

 GEAR SET JA-1007M-17 1-3/4"

305-2820-000

 GEAR SET JA-1007M-20 2"

305-2822-000

 GEAR SET JA-1007M-22 2-1/4"

305-2825-000

 GEAR SET JA-1007M-25 2-1/2"
305-2830-000 GEAR SET JA-1007M-30 3"



P50 P51 PUMP GEAR SET

313-2805-000 GEAR SET MA-1006M-05 1/2"
313-2807-000 GEAR SET MA-1006M-07 3/4"
313-2810-000 GEAR SET MA-1006M-10 1"
313-2812-000 GEAR SET MA-1006M-12 1-1/4"
313-2815-000 GEAR SET MA-1006M-15 1-1/2"
313-2817-000 GEAR SET MA-1006M-17 1-3/4"

313-2820-000

 GEAR SET MA-1006M-20 2"
313-2822-000 GEAR SET MA-1006M-22 2-1/4"
313-2825-000 GEAR SET MA-1006M-25 2-1/2"


313-2910-230 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-10 1"
313-2912-230 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-12 1-1/4"
313-2915-230 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-15 1-1/2"
313-2917-230 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-17 1-3/4"
313-2920-230 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-20 2"
313-2922-230 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-22 2-1/4"
313-2920-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT VD-1135M-4-20 2"
313-2925-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT VD-1135M-4-25 2-1/2"
313-2907-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-07 3/4"
313-2910-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-10 1"
313-2912-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-12 1-1/4"
313-2915-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-15 1-1/2"
313-2917-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-17 1-3/4"
313-2920-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-20 2"
313-2922-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-22 2-1/4"
313-2925-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-25 2-1/2"
313-2910-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-10 1"
313-2917-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-17 1-3/4"
313-2920-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-20, 2"
313-2922-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-22 2-1/4"
313-2925-740 SHAFT/GEAR SET 1" KEYED TD-1135M-3-25 2-1/2"
313-2925-240 SHAFT/GEAR SET 1"-15 TOOTH (SPECIAL) 2-1/2"
313-2910-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-10 1"
313-2912-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-12 1-1/4"
313-2915-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-15 1-1/2"
313-2917-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-17 1-3/4"
313-2920-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-20 2"
313-2922-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-22 2-1/4"
313-2925-750 SHAFT/GEAR SET 1-1/4" KEYED SD-1135M-3-25 2-1/2"
313-2910-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH PD-1135M-3-10 1"
313-2912-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH PD-1135M-3-12 1-1/4"
313-2915-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH PD-1135M-3-15 1-1/2"
313-2917-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH PD-1135M-3-17 1-3/4"
313-2920-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH PD-1135M-3-20 2"
313-2922-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH PD-1135M-3-22 2-1/4"
313-2925-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH SHORT PD-1135M-4-12 1-1/4"
313-2912-450 SHAFT/GEAR SET 1-1/4"-14 TOOTH SHORT PD-1135M-4-15 1-1/2"
313-2915-450 SHAFT/GEAR SET 1-1/4"-14 TOOTH SHORT PD-1135M-4-17 1-3/4"
313-2917-450 SHAFT/GEAR SET 1-1/4"-14 TOOTH SHORT PD-1135M-4-20 2"
313-2920-450 SHAFT/GEAR SET 1-1/4"-14 TOOTH SHORT PD-1135M-4-22 2-1/4"
313-2925-450 SHAFT/GEAR SET 1-1/4"-14 TOOTH SHORT PD-1135M-4-25 2-1/2"



P75 P76 PUMP GEA SET

316-2807-000 GEAR SET PA-1006M-07 3/4"

316-2810-000

 GEAR SET PA-1006M-10 1"

316-2812-000

 GEAR SET PA-1006M-12 1-1/4"

316-2815-000

 GEAR SET PA-1006M-15 1-1/2"

316-2817-000

 GEAR SET PA-1006M-17 1-3/4"

316-2820-000

 GEAR SET PA-1006M-20 2"

316-2822-000

 GEAR SET PA-1006M-22 2-1/4"

316-2825-000

 GEAR SET PA-1006M-25 2-1/2"

316-2827-000

 GEAR SET PA-1006M-27 2-3/4"
316-2830-000 GEAR SET PA-1006M-30 3"


316-2915-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-15 1-1/2"
316-2917-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-17 1-3/4"
316-2920-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-20 2"
316-2922-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-22 2-1/4"
316-2925-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-25 2-1/2"
316-2927-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-27 2-3/4"
316-2930-750 SHAFT/GEAR SET 1-1/4" KEYED AL-1135M-3-30 3"
316-2907-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-07 3/4"
316-2910-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-10 1"
316-2912-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-12 1-1/4"
316-2915-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-15 1-1/2"
316-2917-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-17 1-3/4"
316-2920-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-20 2"
316-2922-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-22 2-1/4"
316-2925-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-25 2-1/2"
316-2927-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-27 2-3/4"
316-2930-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH NE-1135M-3-30 3"



P315 PUMP GEAR SET

326-2805-000

 GEAR SET 1/2"

326-2807-000

 GEAR SET 3/4"

326-2810-000

 GEAR SET 1"

326-2812-000

 GEAR SET 1-1/4"

326-2815-000

 GEAR SET 1-1/2"

326-2817-000

 GEAR SET 1-3/4"
326-2820-000 GEAR SET 2"


326-2905-920 SHAFT/GEAR SET 5/8" KEYED SHORT 1/2"
326-2907-920 SHAFT/GEAR SET 5/8" KEYED SHORT 3/4"
326-2910-920 SHAFT/GEAR SET 5/8" KEYED SHORT 1"
326-2912-920 SHAFT/GEAR SET 5/8" KEYED SHORT 1-1/4"
326-2915-920 SHAFT/GEAR SET 5/8" KEYED SHORT 1-1/2"
326-2917-920 SHAFT/GEAR SET 5/8" KEYED SHORT 1-3/4"
326-2920-920 SHAFT/GEAR SET 5/8" KEYED SHORT 2"
326-2905-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 1/2"
326-2907-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 3/4"
326-2910-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 1"
326-2912-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 1-1/4"
326-2915-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 1-1/2"
326-2917-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 1-3/4"
326-2920-420 SHAFT/GEAR SET 5/8-11 TOOTH SHORT 2"
326-2905-930 SHAFT/GEAR SET 7/8" KEYED SHORT 1/2"
326-2907-930 SHAFT/GEAR SET 7/8" KEYED SHORT 3/4"
326-2910-930 SHAFT/GEAR SET 7/8" KEYED SHORT 1"
326-2912-930 SHAFT/GEAR SET 7/8" KEYED SHORT 1-1/4"

326-2915-930

 SHAFT/GEAR SET 7/8" KEYED SHORT 1-1/2"
326-2917-930 SHAFT/GEAR SET 7/8" KEYED SHORT 1-3/4"

326-2920-930

 SHAFT/GEAR SET 7/8" KEYED SHORT 2"
326-2905-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 1/2"
326-2907-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 3/4"
326-2910-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 1"
326-2912-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 1-1/4"
326-2915-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 1-1/2"
326-2917-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 1-3/4"
326-2920-604 SHAFT/GEAR SET 7/8" KEYED TAPERED (CLUTCH) 2"
326-2905-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 1/2"
326-2907-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 3/4"
326-2910-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 1"
326-2912-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 1-1/4"
326-2915-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 1-1/2"
326-2917-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 1-3/4"
326-2920-430 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 20"


P330 PUMP GEAR SET

324-2805-000

 GEAR 1/2"

324-2807-000

 GEAR 3/4"

324-2810-000

 GEAR 1"

324-2812-000

 GEAR 1-1/4"

324-2815-000

 GEAR 1-1/2"

324-2817-000

 GEAR 1-3/4"
324-2820-000 GEAR 2"


324-2905-730 SHAFT/GEAR SET 7/8 KEYED 1/2"
324-2907-730 SHAFT/GEAR SET 7/8 KEYED 3/4"
324-2910-730 SHAFT/GEAR SET 7/8 KEYED 1"
324-2912-730 SHAFT/GEAR SET 7/8 KEYED 1-1/4"
324-2915-730 SHAFT/GEAR SET 7/8 KEYED 1-1/2"
324-2917-730 SHAFT/GEAR SET 7/8 KEYED 1-3/4"
324-2920-730 SHAFT/GEAR SET 7/8 KEYED 2"
324-2907-230 SHAFT/GEAR SET 7/8-13 TOOTH 3/4"
324-2910-230 SHAFT/GEAR SET 7/8-13 TOOTH 1"
324-2912-230 SHAFT/GEAR SET 7/8-13 TOOTH 1-1/4"
324-2915-230 SHAFT/GEAR SET 7/8-13 TOOTH 1-1/2"
324-2917-230 SHAFT/GEAR SET 7/8-13 TOOTH 1-3/4"
324-2920-230 SHAFT/GEAR SET 7/8-13 TOOTH 2"
324-2907-740 SHAFT/GEAR SET 1" KEYED 3/4"
324-2910-740 SHAFT/GEAR SET 1" KEYED 1"
324-2912-740 SHAFT/GEAR SET 1" KEYED 1-1/4"
324-2915-740 SHAFT/GEAR SET 1" KEYED 1-1/2"
324-2917-740 SHAFT/GEAR SET 1" KEYED 1-3/4"

324-2920-740

 SHAFT/GEAR SET 1" KEYED 2"
324-2907-240 SHAFT/GEAR SET 1"-15 TOOTH 3/4"

324-2910-240

 SHAFT/GEAR SET 1"-15 TOOTH 1"
324-2912-240 SHAFT/GEAR SET 1"-15 TOOTH 1-1/4"
324-2915-240 SHAFT/GEAR SET 1"-15 TOOTH 1-1/2"
324-2917-240 SHAFT/GEAR SET 1"-15 TOOTH 1-3/4"
324-2920-240 SHAFT/GEAR SET 1"-15 TOOTH 2"



P350 PUMP GEAR SET

323-2805-000 GEAR SET 1/2"

323-2807-000

 GEAR SET 3/4"

323-2810-000

 GEAR SET 1"

323-2812-000

 GEAR SET 1-1/4"

323-2815-000

 GEAR SET 1-1/2"

323-2817-000

 GEAR SET 1-3/4"

323-2820-000

 GEAR SET 2"

323-2822-000

 GEAR SET 2-1/4"
323-2825-000 GEAR SET 2-1/2"



323-2907-230 SHAFT/GEAR SET 7/8-13 TOOTH 3/4"
323-2910-230 SHAFT/GEAR SET 7/8-13 TOOTH 1"
323-2912-230 SHAFT/GEAR SET 7/8-13 TOOTH 1-1/4"
323-2915-230 SHAFT/GEAR SET 7/8-13 TOOTH 1-1/2"
323-2917-230 SHAFT/GEAR SET 7/8-13 TOOTH 1-3/4"
323-2920-230 SHAFT/GEAR SET 7/8-13 TOOTH 2"
323-2922-230 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 2-1/4"
323-2925-230 SHAFT/GEAR SET 7/8-13 TOOTH SHORT 2-1/2"
323-2910-740 SHAFT/GEAR SET 1" KEYED 1"
323-2912-740 SHAFT/GEAR SET 1" KEYED 1-1/4"
323-2915-740 SHAFT/GEAR SET 1" KEYED 1-1/2"
323-2917-740 SHAFT/GEAR SET 1" KEYED 1-3/4"
323-2920-740 SHAFT/GEAR SET 1" KEYED 2"
323-2922-740 SHAFT/GEAR SET 1" KEYED 2-1/4"
323-2925-740 SHAFT/GEAR SET 1" KEYED 2-1/2"
323-2912-240 SHAFT/GEAR SET 1"-15 TOOTH 1-1/4"
323-2915-240 SHAFT/GEAR SET 1"-15 TOOTH 1-1/2"
323-2917-240 SHAFT/GEAR SET 1"-15 TOOTH 1-3/4"
323-2920-240 SHAFT/GEAR SET 1"-15 TOOTH 2"
323-2922-240 SHAFT/GEAR SET 1"-15 TOOTH 2-1/4"
323-2925-240 SHAFT/GEAR SET 1"-15 TOOTH 2-1/2"
323-2912-204 SHAFT/GEAR SET 8" -17 TOOTH (SPECIAL) 2-1/2"
323-2907-750 SHAFT/GEAR SET 1-1/4" KEYED 1-1/4"
323-2910-750 SHAFT/GEAR SET 1-1/4" KEYED 1"
323-2912-750 SHAFT/GEAR SET 1-1/4" KEYED 1-1/4"
323-2915-750 SHAFT/GEAR SET 1-1/4" KEYED 1-1/2"
323-2917-750 SHAFT/GEAR SET 1-1/4" KEYED 1-3/4"
323-2920-750 SHAFT/GEAR SET 1-1/4" KEYED 2"
323-2922-750 SHAFT/GEAR SET 1-1/4" KEYED 2-1/4"
323-2925-750 SHAFT/GEAR SET 1-1/4" KEYED 2-1/2"
323-2907-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 3/4"
323-2910-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1"
323-2912-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1-1/4"
323-2915-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1-1/2"
323-2917-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1-3/4"
323-2920-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 2"
323-2922-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 2-1/4"
323-2925-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 2-1/2"



P365 PUMP GEAR SET


322-2807-000, GEAR SET, 3/4"

 GEAR SET 1/2"

322-2810-000, GEAR SET, 1"

 GEAR SET 3/4"

322-2812-000, GEAR SET, 1-1/4"

 GEAR SET 1"

322-2815-000, GEAR SET, 1-1/2"

 GEAR SET 1-1/4"

322-2817-000, GEAR SET, 1-3/4"

 GEAR SET 1-1/2"

322-2820-000, GEAR SET, 2"

 GEAR SET 1-3/4"

322-2822-000, GEAR SET, 2-1/4"

 GEAR SET 2"

322-2825-000, GEAR SET, 2-1/2"

 GEAR SET 2-1/4"



322-2917-750

 SHAFT/GEAR SET 1-1/4" KEYED 1-3/4"

322-2920-750

 SHAFT/GEAR SET 1-1/4" KEYED 2"

322-2922-750

 SHAFT/GEAR SET 1-1/4" KEYED 2-14"

322-2925-750

 SHAFT/GEAR SET 1-1/4" KEYED 2-1/2"

322-2907-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 3/4"

322-2910-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1"

322-2912-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1-1/4"

322-2915-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1-1/2"

322-2917-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 1-3/4"

322-2920-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 2"

322-2922-250

 SHAFT/GEAR SET 1-1/4"-14 TOOTH 2-1/4"
322-2925-250 SHAFT/GEAR SET 1-1/4"-14 TOOTH 2-1/2"



C101 C102 G101 G102 DUMP PUMP GEAR SET

312-2920-230

 SHAFT/GEAR SET 7/8-13 TOOTH BD-1135M-3-20 2"

313-2920-230

 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-20 2"

313-2925-230

 SHAFT/GEAR SET 7/8-13 TOOTH VD-1135M-3-25 2-1/2"



312-2920-842

 G101 TWIN GEAR SET 2"

314-2920-640

 C101 TWIN GEAR SET 2"

314-2925-130

 SHAFT/GEAR SET SINGLE STAGE 2-1/2" GEAR

314-2925-640

 C101 TWIN GEAR SET 2-1/2"



Catalogs Download:


Gear Parts List.pdf


Permco-Commercial Gear Parts.xlsx




You may also interested in other products:

* C101 C102 Dump Pump

* P315 P330 P350 P365 Gear Pump

* Parker Commercial Gear Pump Castings

* Parker Commercial Gear Pump Parts

* Rexroth A4VG Piston Pump Parts

* Vickers Denison Vane Pump Parts

* Parker Commercial Telescopic Cylinder




Previous:
Next:

RELATED PRODUCTS

P81 Log Splitter Valve
P81 Log Splitter Valve
45VQT Series Vane Pump
45VQT Vane Hydraulic Pumps
45VQ Vane Pump
45VQ Tandem Vane Pump
P120 Monoblock Directional Control Valve
P120 Monoblock Directional Control Valve
V23 Piston Pump
V23 Piston Pump
DVA20-DVG20 series valve
DVA20-DVG20 series valve
T67CBAS Series Vane Pumps
T67CBAS Series Vane Pumps
T6、T7 Series-pin Vane Pumps
T6、T7 Series - pin Vane Pumps
20V Series-Single Pumps
20V Custom Vane Pump Designs
25VQT Series Vane Pump
25VQT custom pump vanes
SQP Series-double Pumps
SQP Series-double Pumps
V Series-Single Pumps
V Series-Single Pumps
20VQ Vane Pump
20VQ Vane Pump Design
35VQ Vane Pump
35VQ Manufacturer of Vane Pumps

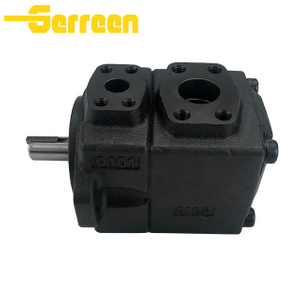

PV2R Series-vane Pump
PV2R Yuken Hydraulic Vane Pump

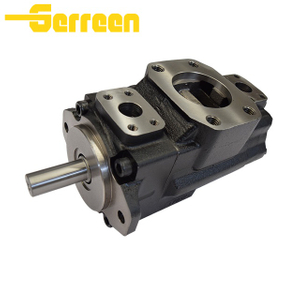

T6 T67 T7 Series-double Pumps
T6 T67 T7 Series-double Pumps

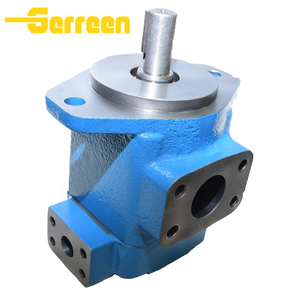

25VQ Vane Pump
25VQ Vane Pump
4525VQSV10 Series Vane Pumps
4525VQSV10 Series Vane Pumps
T6 T7 Series-Cartridge
T6 T7 Series-Cartridge

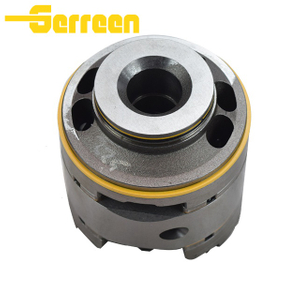

VQ Series-cartridge
VQ Series-cartridge

GREEN HYDRAULIC CAN GIVE YOU THE SERVICE AND ATTENTION THAT BIGGER COMPANIES CANNOT

Contact us
Select File to Upload
    If There Are Any Gerreen Machining lssues,
    Please Contact Us.
    Hydraulic
    Application
    Why Green
    Home
    COPYRIGHT © 2025 CHANGZHOU GREEN HYDRAULIC CO., LTD. ALL RIGHTS RESERVED.
