P30/31 P50/51 P75/76 P315 P330 P350 P365 C101/102 G101/102

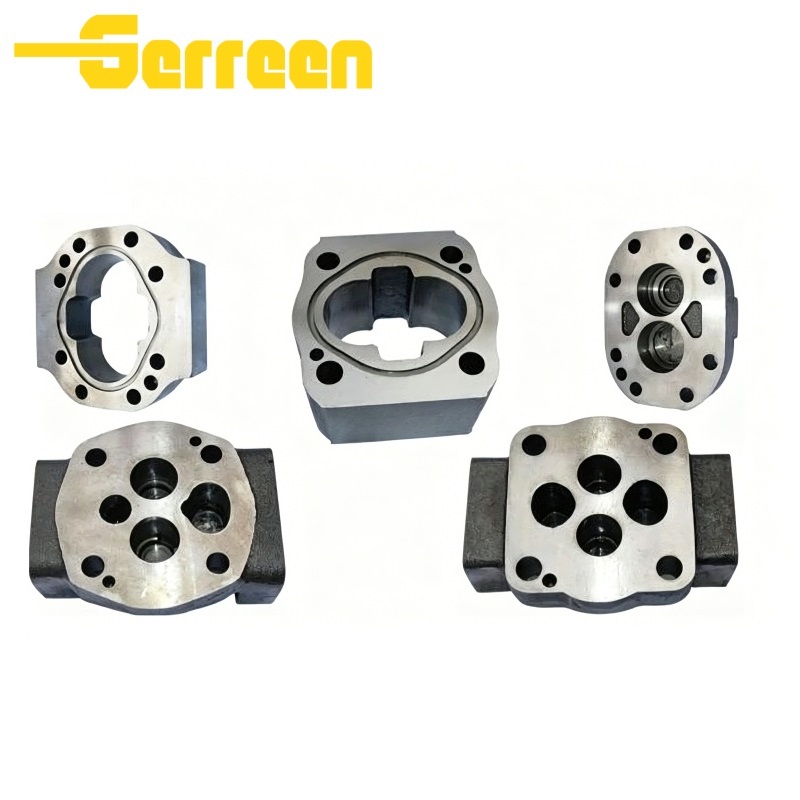

Green Hydraulic
P30/31 P50/51 P75/76 P315 P330 P350 P365 C101/102 G101/102
Standard export carton/plywood case
5000pcs/month
1~45days
Yes
ISO9001:2015
1 set
Product Description
| 302-7300-100, 15, BEARING CARRIER BLANK, NA-1687 |
| 302-8005-100, 15, 1/2" GEAR HOUSING, DA-1688-05 |
| 302-8007-100, 15, 3/4" GEAR HOUSING, DA-1688-07 |
| 302-8010-100, 15, 1" GEAR HOUSING, DA-1688-10 |
| 302-8012-100, 15, 1-1/4" GEAR HOUSING, DA-1688-12 |
| 302-8015-100, 15, 1-1/2" GEAR HOUSING, DA-1688-15 |
| 302-8017-100, 15, 1-3/4" GEAR HOUSING, DA-1688-17 |
| 302-8020-100, 15, 2" GEAR HOUSING, DA-1688-20 |
| 302-3100-100, 15, PORT END COVER, DA-1603 |
| 302-5025-201, 15, SHAFT END COVER, 2 BOLT "A" w/case drain, LA-1685-3 |
| 302-5025-202, 15, SHAFT END COVER, 2 BOLT "B" w/case drain, TA-1685-3 |
| 302-5035-201, 15, SHAFT END COVER, 4 BOLT "B" w/case drain, KA-1685-3 |
P20 P21 PUMP CASTING
| 308-8205-100, 21, 1/2" GEAR HOUSING, RD-020-05D, DOWELED |
| 308-8207-100, 21, 3/4" GEAR HOUSING, RD-020-07D, DOWELED |
| 308-8210-100, 21, 1" GEAR HOUSING, RD-020-10D, DOWELED |
| 308-8212-100, 21, 1-1/4" GEAR HOUSING, RD-020-12D, DOWELED |
| 308-8215-100, 21, 1-1/2" GEAR HOUSING, RD-020-15D, DOWELED |
| 308-8217-100, 21, 1-3/4" GEAR HOUSING, RD-020-17D, DOWELED |
| 308-8220-100, 21, 2" GEAR HOUSING, RD-020-20D, DOWELED |
| 308-3100-100, 21, PORT END COVER, XD-020D, DOWELED |
| 308-7300-100, 21, BEARING CARRIER BLANK MOTOR, VD-020D, DOWELED |
| 308-5053-402, 21, SHAFT END COVER, 2/4 BOLT "B" w/case drain, DB-020D, DOWELED |
| 308-5020-404, 21, SHAFT END COVER, 2 BOLT "A" w/case drain, WD-020D, DOWELED |
| 308-5020-401, 21, SHAFT END COVER, 2 BOLT "B" w/case drain, GD-020D, DOWELED |
| 308-5029-405, 21, SHAFT END COVER, 2 BOLT "B" SHORT, GD-020DS, DOWELED |
| 308-5030-401, 21, SHAFT END COVER, 4 BOLT "B" w/case drain, ED-020D, DOWELED |
| 308-7363-100, 21, BEARING CARRIER w/common suction PUMP, DOWELED |
P25 PUMP CASTING
| 303-7300-100, 25, BEARING CARRIER BLANK, KB-1687, DOWELED |
| 303-3100-100, 25, PORT END COVER, RA-1603, DOWELED |
| 303-5021-403, 25, 2 BOLT "B" SHAFT END COVER w/case drain, UA-1686-3, DOWELED |
| 303-5022-202, 25, 2 BOLT "B" DOUBLE BEARING SHAFT END COVER w/case drain, SB-1686-3, DOWELED |
| 303-5021-204, 25, 2 BOLT "C" SHAFT END COVER w/case drain, YA-1686-3, DOWELED |
| 303-5022-207, 25, 2 BOLT "C" DOUBLE BEARING SHAFT END COVER w/case drain, TB-1686-3, DOWELED |
| 303-5037-401, 25, 4 BOLT "B" SHAFT END COVER w/case drain, TA-1686-3, DOWELED |
| 303-5022-201, 25, 4 BOLT "B" DOUBLE BEARING SHAFT END COVER w/case drain, LB-1686-3, DOWELED |
| 303-5031-202, 25, 4 BOLT "C" SHAFT END COVER w/case drain, XA-1686-3, DOWELED |
| 303-5039-204, 25, 4 BOLT "C" DOUBLE BEARING SHAFT END COVER w/case drain, VB-1686-3, DOWELED |
| 303-5011-202, 25, PAD MOUNT SHAFT END COVER w/case drain, SA-1686-3, DOWELED |
| 303-5012-201, 25, PAD MOUNT DOUBLE BEARING SHAFT END COVER w/case drain, MB-1686-3, DOWELED |
| 303-5043-202, 25, 6 BOLT ROUND SHAFT END COVER, 2-5/8" PILOT, CODE 305, CB-1685 |
| 303-5041-201, 25, 6 BOLT ROUND SHAFT END COVER, 3.15" PILOT, CODE 303, BB-1685 |
P30 P31 PUMP CASTING
| 312-3120-100SP, 31, PORT END COVER SPECIAL, (can port out the sides), DOWELED |
| 312-8205-100, 31, 1/2" GEAR HOUSING, RA-1688-05, DOWELED |
| 312-8207-100, 31, 3/4" GEAR HOUSING, RA-1688-07, DOWELED |
| 312-8210-100, 31, 1" GEAR HOUSING, RA-1688-10, DOWELED |
| 312-8212-100, 31, 1-1/4" GEAR HOUSING, RA-1688-12, DOWELED |
| 312-8215-100, 31, 1-1/2" GEAR HOUSING, RA-1688-15, DOWELED |
| 312-8217-100, 31, 1-3/4" GEAR HOUSING, RA-1688-17, DOWELED |
| 312-8220-100, 31, 2" GEAR HOUSING, RA-1688-20, DOWELED |
| 312-8222-100, 31, 2-1/4" GEAR HOUSING, RA-1688-22, DOWELED |
| 312-8225-100, 31, 2-1/2" GEAR HOUSING, RA-1688-25, DOWELED |
| 312-3120-100, 31, PORT END COVER, XA-1603, DOWELED |
| 312-3420-100, 31, PORT END COVER LARGE PORTS, XA-1603RP, DOWELED |
| 312-7740-100, 31 MOTOR, BEARING CARRIER BLANK, VA-1687, DOWELED |
| 312-7300-100, 31 MOTOR BEARING CARRIER, BLANK NARROW, VA-1687, DOWELED |
| 312-5057-401, 31, 2/4 BOLT "B" SHAFT END COVER w/case drain, GEB-1685-3, DOWELED |
| 312-5027-404, 31, 2 BOLT "A" SHAFT END COVER w/case drain, WB-1685-3, DOWELED |
| 312-5027-401, 31, 2 BOLT "B" SHAFT END COVER w/case drain, GB-1685-3, DOWELED |
| 312-5029-201, 31, 2 BOLT "B" SHORT SHAFT END COVER, DB-1685-3, DOWELED |
| 312-5037-401, 31, 4 BOLT "B" SHAFT END COVER w/case drain, EB-1685-3, DOWELED |
| 312-5037-402, 31, 4 BOLT "C" SHAFT END COVER w/case drain, PB-1685-3, DOWELED |
| 312-5017-401, 31, PAD MOUNT SHAFT END COVER w/case drain, AC-1685-3, DOWELED |
| 312-5047-401, 31, 6 BOLT ROUND SHAFT END COVER w/case drain, FB-1685-3, DOWELED |
| 312-7723-100, 31, PUMP BEARING CARRIER w/common suction, WA-1687-11, DOWELED |
P37 PUMP CASTING
| 305-8005-100, 37, 1/2" GEAR HOUSING, LA-1688-05 |
| 305-8007-100, 37, 3/4" GEAR HOUSING, LA-1688-07 |
| 305-8010-100, 37, 1" GEAR HOUSING, LA-1688-10 |
| 305-8012-100, 37, 1-1/4" GEAR HOUSING, LA-1688-12 |
| 305-8015-100, 37, 1-1/2" GEAR HOUSING, LA-1688-15 |
| 305-8017-100, 37, 1-3/4" GEAR HOUSING, LA-1688-17 |
| 305-8020-100, 37, 2" GEAR HOUSING, LA-1688-20 |
| 305-8022-100, 37, 2-1/4" GEAR HOUSING, LA-1688-22 |
| 305-8025-100, 37, 2-1/2" GEAR HOUSING, LA-1688-25 |
| 305-8030-100, 37, 3" GEAR HOUSING, LA-1688-30 |
| 305-3100-100, 37, PORT END COVER, NA-1603 |
| 305-7300-100, 37, BEARING CARRIER BLANK MOTOR, JA-1687 |
| 305-5021-401, 37, 2 BOLT "C" SHAFT END COVER w/case drain, MA-1686-3 |
| 305-5031-403, 37, 4 BOLT "C" SHAFT END COVER w/case drain, HA-1686-3 |
P50 P51 PUMP CASTING
| 313-3120-100SP, 51, PORT END COVER SPECIAL, (can port out the sides), DOWELED |
| 313-8205-100, 25/51, 1/2" GEAR HOUSING, MA-1688-05, DOWELED |
| 313-8207-100, 25/51, 3/4" GEAR HOUSING, MA-1688-07, DOWELED |
| 313-8210-100, 25/51, 1" GEAR HOUSING, MA-1688-10, DOWELED |
| 313-8212-100, 25/51, 1-1/4" GEAR HOUSING, MA-1688-12, DOWELED |
| 313-8215-100, 25/51, 1-1/2" GEAR HOUSING, MA-1688-15, DOWELED |
| 313-8217-100, 25/51, 1-3/4" GEAR HOUSING, MA-1688-17, DOWELED |
| 313-8220-100, 25/51, 2" GEAR HOUSING, MA-1688-20, DOWELED |
| 313-8222-100, 25/51, 2-1/4" GEAR HOUSING, MA-1688-22, DOWELED |
| 313-8225-100, 25/51, 2-1/2" GEAR HOUSING, MA-1688-25, DOWELED |
| 313-8230-100, 25/51, 3" GEAR HOUSING, MA-1688-30, DOWELED |
| 313-3120-100, 51, PORT END COVER, ZA-1603, DOWELED |
| 313-3420-100, 51, PORT END COVER, LARGE PORTS, ZA-1603-RP, DOWELED |
| 313-7740-100, 51 MOTOR, BEARING CARRIER BLANK, TA-1687, DOWELED |
| 313-5057-401, 51, 2/4 BOLT "B" SHAFT END COVER w/case drain, DOWELED |
| 313-5027-401, 51, 2 BOLT "B" SHAFT END COVER w/case drain, RB-1685-3, DOWELED |
| 313-5027-402, 51, 2 BOLT "C" SHAFT END COVER w/case drain, NB-1685-3, DOWELED |
| 313-5027-406, 51, 2 BOLT "C" SHORT SHAFT END COVER, LB-1685-3, DOWELED |
| 313-5037-401, 51, 4 BOLT "B" SHAFT END COVER w/case drain, HB-1685-3, DOWELED |
| 313-5037-402, 51, 4 BOLT "C" SHAFT END COVER w/case drain, KB-1685-3, DOWELED |
| 313-5017-401, 51, PAD MOUNT SHAFT END COVER w/case drain, MB-1685-3, DOWELED |
| 313-7723-100, 51 PUMP, BEARING CARRIER w/common suction, TA-1687-11, DOWELED |
P75 P76 PUMP CASTING
| 316-8207-100, 76, 3/4" GEAR HOUSING, SA-1688-07, DOWELED |
| 316-8210-100, 76, 1" GEAR HOUSING, SA-1688-10, DOWELED |
| 316-8212-100, 76, 1-1/4" GEAR HOUSING, SA-1688-12, DOWELED |
| 316-8215-100, 76, 1-1/2" GEAR HOUSING, SA-1688-15, DOWELED |
| 316-8217-100, 76, 1-3/4" GEAR HOUSING, SA-1688-17, DOWELED |
| 316-8220-100, 76, 2" GEAR HOUSING, SA-1688-20, DOWELED |
| 316-8222-100, 76, 2-1/4" GEAR HOUSING, SA-1688-22, DOWELED |
| 316-8225-100, 76, 2-1/2" GEAR HOUSING, SA-1688-25, DOWELED |
| 316-8227-100, 76, 2-3/4" GEAR HOUSING, SA-1688-27, DOWELED |
| 316-8230-100, 76, 3" GEAR HOUSING, SA-1688-30, DOWELED |
| 316-3120-100, 76, PORT END COVER, YA-1603, DOWELED |
| 316-7740-100, 76 MOTOR, BEARING CARRIER BLANK, YA-1687, DOWELED |
| 316-5027-402, 76, 2 BOLT "C" SHAFT END COVER w/case drain, VB-1685-3, DOWELED |
| 316-5037-401, 76, 4 BOLT "B" SHAFT END COVER w/case drain, SB-1685-3, DOWELED |
| 316-5037-402, 76, 4 BOLT "C" SHAFT END COVER w/case drain, TB-1685-3, DOWELED |
| 316-5037-403, 76, 4 BOLT "D" SHAFT END COVER w/case drain, UB-1685-3, DOWELED |
| 316-7723-100, 76 PUMP, BEARING CARRIER w/common suction, YA-1687-11, DOWELED |
P315 PUMP CASTING
| 326-7100-100, 315, BEARING CARRIER 1 IN 1 OUT, NO BUSHING, DOWELED |
| 326-7300-100, 315, BEARING CARRIER 1 IN 2 OUT, NO BUSHING, DOWELED |
| 326-8205-100, 315 MOTOR, 1/2" GEAR HOUSING, DOWELED |
| 326-8207-100, 315 MOTOR, 3/4" GEAR HOUSING, DOWELED |
| 326-8210-100,315 MOTOR, 1" GEAR HOUSING, DOWELED |
| 326-8212-100, 315 MOTOR, 1-1/4" GEAR HOUSING, DOWELED |
| 326-8215-100, 315 MOTOR, 1-1/2" GEAR HOUSING, DOWELED |
| 326-8217-100, 315 motor, 1-3/4" GEAR HOUSING, DOWELED |
| 326-8220-100, 315 MOTOR, 2" GEAR HOUSING, DOWELED |
| 326-3020-100, 315 MOOR, PORT END COVER SIDE PORTING, NO BUSHING, DOWELED |
| 326-5029-404, 315 MOTOR, 2 BOLT "A" SHAFT END COVER, w/ case drain, NO BUSHING |
| 326-5029-403, 315 MOTOR, 2 BOLT "B" SHAFT END COVER, w/ case drain, NO BUSHING |
| 326-8105-100, 315 PUMP, 1/2" GEAR HOUSING, DOWELED |
| 326-8107-100, 315 PUMP, 3/4" GEAR HOUSING, DOWELED |
| 326-8110-100, 315 PUMP, 1" GEAR HOUSING, DOWELED |
| 326-8112-100, 315 PUMP, 1-1/4" GEAR HOUSING, DOWELED |
| 326-8115-100, 315 PUMP, 1-1/2" GEAR HOUSING, DOWELED |
| 3326-8117-100, 315 PUMP, 1-3/4" GEAR HOUSING, DOWELED |
| 326-8120-100, 315 PUMP, 2" GEAR HOUSING, DOWELED |
| 326-3030-100, 315 PUMP, PORT END COVER SIDE PORTING, NO BUSHING,DOWELED |
| 326-5029-204, 315 PUMP, 2 BOLT "A" SHAFT END COVER, NO BUSHING, DOWELED |
| 326-5029-203, 315 PUMP, 2 BOLT "B" SHAFT END COVER, NO BUSHING, DOWELED |
P330 PUMP CASTING
| 324-7200-100, 330, BEARING CARRIER BLANK, w/o bushing, DOWELED |
| 324-7100-100, 330, BEARING CARRIER, SINGLE OUTLET, w/o bushing, DOWELED |
| 324-7300-100, 330, BEARING CARRIER, DUAL OUTLET, w/o bushing, DOWELED |
| 324-8205-100, 330 MOTOR, 1/2" GEAR HOUSING, DOWELED |
| 324-8207-100, 330 MOTOR, 3/4" GEAR HOUSING, DOWELED |
| 324-8210-100, 330 MOTOR, 1" GEAR HOUSING, DOWELED |
| 324-8212-100, 330 MOTOR, 1-1/4" GEAR HOUSING, DOWELED |
| 324-8215-100, 330 MOTOR, 1-1/2" GEAR HOUSING, DOWELED |
| 324-8217-100, 330 MOTOR, 1-3/4" GEAR HOUSING, DOWELED |
| 324-8220-100, 330 MOTOR, 2" GEAR HOUSING, DOWELED |
| 324-3020-100, 330 MOTOR, PORT END COVER SIDE PORTING, w/o bushing, DOWELED |
| 324-8105-100, 330 PUMP, 1/2" GEAR HOUSING, RA-05, DOWELED |
| 324-8107-100, 330 PUMP, 3/4" GEAR HOUSING, RA-07, DOWELED |
| 324-8110-100, 330 PUMP, 1" GEAR HOUSING, RA-10, DOWELED |
| 324-8112-100, 330 PUMP, 1-1/4" GEAR HOUSING, RA-12, DOWELED |
| 324-8115-100, 330 PUMP, 1-1/2" GEAR HOUSING, RA-15, DOWELED |
| 324-8117-100, 330 PUMP, 1-3/4" GEAR HOUSING, RA-17, DOWELED |
| 324-8120-100, 330 PUMP, 2" GEAR HOUSING, RA-20, DOWELED |
| 324-3000-100, 330 PUMP, PORT END COVER BLANK, w/o bushing, XA-03-T, DOWELED |
| 324-3010-100, 330 PUMP, PORT END COVER SIDE PORTING, w/o bushing, XA-03, DOWELED |
| 324-5053-201, 330, 2/4 BOLT "B" SHAFT END COVER, w/o bushing, DOWELED |
| 324-5023-201, 330, 2 BOLT "B" SHAFT END COVER, w/o bushing, GB-3, DOWELED |
| 324-5033-201, 330, 4 BOLT "B" SHAFT END COVER, w/o bushing, EB-3, DOWELED |
| 324-5033-202, 330, 4 BOLT "C" SHAFT END COVER, w/o bushing, PB-3, DOWELED |
P350 PUMP CASTING
| 323-7200-100, 350 BEARING CARRIER, BLANK, w/o bushing, DOWELED |
| 323-7100-100, 350, BEARING CARRIER, SINGLE OUTLET, w/o bushing, DOWELED |
| 323-7300-100, 350, BEARING CARRIER, DUAL OUTLET, w/o bushing, TA-11-2, DOWELED |
| 323-8205-100,350 MOTOR, 1/2" GEAR HOUSING, DOWELED |
| 323-8207-100, 350 MOTOR, 3/4" GEAR HOUSING, DOWELED |
| 323-8210-100, 350 MOTOR, 1" GEAR HOUSING, DOWELED |
| 323-8212-100, 350 MOTOR, 1-1/4" GEAR HOUSING, DOWELED |
| 3323-8215-100, 350 MOTOR, 1-1/2" GEAR HOUSING, DOWELED |
| 323-8217-100, 350 MOTOR, 1-3/4" GEAR HOUSING, DOWELED |
| 323-8220-100, 350 MOTOR, 2" GEAR HOUSING, DOWELED |
| 323-8222-100, 350 MOTOR, 2-1/" GEAR HOUSING, DOWELED |
| 323-8225-100, 350 MOTOR, 2-1/2" GEAR HOUSING, DOWELED |
| 323-3020-100, 350 MOTOR, PORT END COVER, SIDE PORTING w/o bushing, ZA-03-M, DOWELED |
| 323-8105-100, 350 PUMP, 1/2" GEAR HOUSING, MA-05, DOWELED |
| 323-8107-100, 350 PUMP, 3/4" GEAR HOUSING, MA-07, DOWELED |
| 323-8110-100, 350 PUMP, 1" GEAR HOUSING, MA-10, DOWELED |
| 323-8112-100, 350 PUMP, 1-1/4" GEAR HOUSING, MA-12, DOWELED |
| 323-8115-100, 350 PUMP, 1-1/2" GEAR HOUSING, MA-15, DOWELED |
| 323-8117-100, 350 PUMP, 1-3/4" GEAR HOUSING, MA-17, DOWELED |
| 323-8120-100, 350 PUMP, 2" GEAR HOUSING, MA-20, DOWELED |
| 323-8122-100, 350 PUMP, 2-1/4" GEAR HOUSING, MA-22, DOWELED |
| 323-8125-100, 350 PUMP, 2-1/2" GEAR HOUSING, MA-25, DOWELED |
| 323-3000-100, 350, PORT END COVER BLANK, w/o bushing, ZA-03-T, DOWELED |
| 323-3010-100, 350 PUMP, PORT END COVER, SIDE PORTING, w/o bushing, DOWELED |
| 323-5053-201, 350, 2/4 BOLT "B" SHAFT END COVER, w/o bushing, RHB-3, DOWELED |
| 323-5023-201, 350, 2 BOLT "B" SHAFT END COVER, w/o bushing, RB-3, DOWELED |
| 323-5023-202, 350, 2 BOLT "C" SHAFT END COVER, w/o bushing, NB-3, DOWELED |
| 323-5033-201, 350, 4 BOLT "B" SHAFT END COVER, w/o bushing, HB-3, DOWELED |
| 323-5033-202, 350, 4 BOLT "C" SHAFT END COVER, w/o bushing, KB-3, DOWELED |
P365 PUMP CASTING
| 322-7100-100, 365, BEARING CARRIER, SINGLE OUTLET, w/o bushing, |
| 322-7300-100, 365, BEARING CARRIER, DUAL OUTLET, w/o bushing, |
| 322-8105-100, 365 PUMP, 1/2" GEAR HOUSING, |
| 322-8107-100, 365 PUMP, 3/4" GEAR HOUSING, |
| 322-8110-100, 365 PUMP, 1" GEAR HOUSING, |
| 322-8112-100, 365 PUMP, 1-1/4" GEAR HOUSING, |
| 322-8115-100, 365 PUMP, 1-1/2" GEAR HOUSING, |
| 322-8117-100, 365 PUMP, 1-3/4" GEAR HOUSING, |
| 322-8120-100, 365 PUMP, 2" GEAR HOUSING, |
| 322-8122-100, 365 PUMP, 2-1/4" GEAR HOUSING, |
| 322-8125-100, 365 PUMP, 2-1/2" GEAR HOUSING, |
| 322-3000-100, 365 PUMP, PORT END COVER BLANK, w/o bushing, |
| 322-3010-100, 365 PUMP, PORT END COVER PORTING, w/o bushing, |
| 322-5023-202, 365 PUMP, 2 BOLT "C" SHAFT END COVER, w/o bushing, |
| 322-5033-201, 365 PUMP, 4 BOLT "B" SHAFT END COVER, w/o bushing, |
| 322-5033-202, 365 PUMP, 4 BOLT "C" SHAFT END COVER, w/o bushing, |
C101/102 G101/102DUMP PUMP CASTING
| 314-8020-100, C101/102, 2" GEAR HOUSING, TA1688-20 |
| 314-8025-100, C101/102, 2-1/2" GEAR HOUSING, TA1688-25 (5.5" wide) |
| 308-8020-901, G102, 2" GEAR HOUSING |
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as vanes,gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
