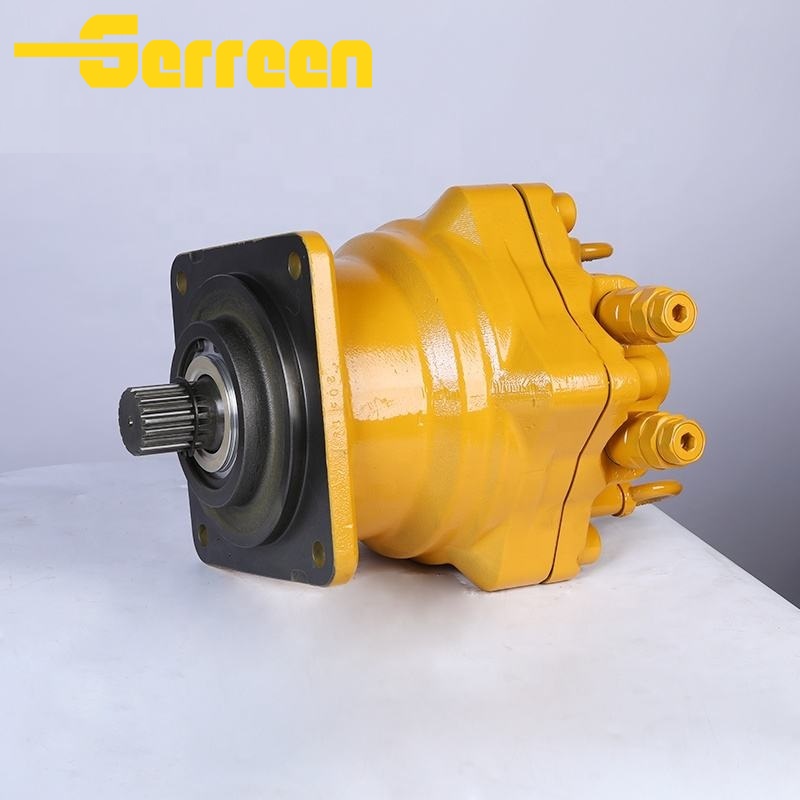

M5X250CHB Swing Motor

 M5X250CHB Swing Motor Overview

The M5X250CHB Swing Motor is a heavy-duty hydraulic motor designed for the swing system of large crawler excavators. As part of the M5X series, it adopts a swash plate type axial piston design to deliver high torque output, excellent efficiency, and reliable performance under demanding working conditions.

This swing motor is mainly used to drive the rotation of the excavator upper structure, ensuring smooth and stable swing movements during operation. With its large displacement and optimized internal structure, the M5X250CHB provides strong power transmission and precise swing control, making it suitable for large-scale construction and mining equipment.

Equipped with an integrated hydraulic multi-disc brake system and manufactured with high-strength materials and precision machining technology, the M5X250CHB swing motor offers superior durability, long service life, and easy maintenance. It is widely used in 45–80 ton class hydraulic excavators operating in construction, quarry, and mining applications.

Core Features

• Swash plate type axial piston hydraulic motor

• Large displacement for high torque output

• Smooth and stable excavator swing performance

• Integrated hydraulic multi-disc brake system

• High-strength components for heavy-duty applications

• High efficiency and reliable power transmission

• Easy installation and maintenance

Advantages

The M5X250CHB swing motor is suitable for:

• Hydraulic excavators

• Mining excavators

• Large construction machinery

• Quarry and earthmoving equipment

Specifications

Applications

• Strong torque output for large excavator swing systems

• Stable rotation performance with precise control

• Durable design suitable for harsh working environments

• High efficiency and long service life

• Reliable replacement for original OEM swing motors

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

M5X180 Swing Motor FAQ

1.What is the function of the M5X250CHB swing motor?

The M5X250CHB swing motor is used in the excavator swing system to drive the rotation of the upper structure, enabling smooth and stable swing movements during operation.

2.What type of motor is the M5X250CHB?

The M5X250CHB is a swash plate type axial piston hydraulic motor, designed to provide high torque output, high efficiency, and reliable performance in heavy-duty excavator swing applications.

3.What excavator size is the M5X250CHB suitable for?

The M5X250CHB swing motor is commonly used in 45–80 ton class hydraulic excavators, especially in mining and large construction equipment.

4. Does the M5X250CHB swing motor include a brake system?

Yes, the M5X250CHB swing motor is equipped with an integrated hydraulic multi-disc brake, which helps control swing motion and ensures safe operation when the excavator stops.

5. What is the displacement of the M5X250CHB swing motor?

The displacement of the M5X250CHB swing motor is approximately 250 ml/rev, allowing it to generate strong torque for large excavator swing systems.

6. What type of shaft does the M5X250CHB swing motor use?

The M5X250CHB typically uses an internal spline shaft, which connects directly to the swing reduction gearbox.

7.Can the M5X250CHB swing motor replace the original motor?

Yes, the M5X250CHB swing motor can be used as a direct replacement for OEM swing motors with matching specifications and installation dimensions.

8.What hydraulic oil is recommended for the M5X250CHB swing motor?

High-quality anti-wear hydraulic oil such as ISO VG46 or ISO VG68 is recommended to ensure stable performance and extend the service life of the motor.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.Are you a manufacture for the vane pump or a wholesale ?

We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.

3.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

4.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

5.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

6.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
